Welcome to taosastronomer.com!

offering local "hands-on" observing
(visual and imaging) sessions and instruction
viewing and imaging from Rabbit Valley Observatory
a dark sky location on the mesa just west of Taos, NM



Hands-On Visual / Video Observing


At Rabbit Valley Observatory, you can choose a visual observation program that is as simple or complex as you desire. One example of a program we did several years ago at a local Bed and Breakfast can be accessed through this text link.

Visual observation can start with a review of the constellations and bright stars and planets visible. We can (and should before any observing session begins) refer to a plethora of printed reference materials (to the dismay of his wife, Mr. Greiner actually collects old-school printed planisphere star charts and star atlases -- even celestial globes, even gigantic ones -- of all vintages!) as well as sophisticated online atlases and observing aids.

vintage star charts

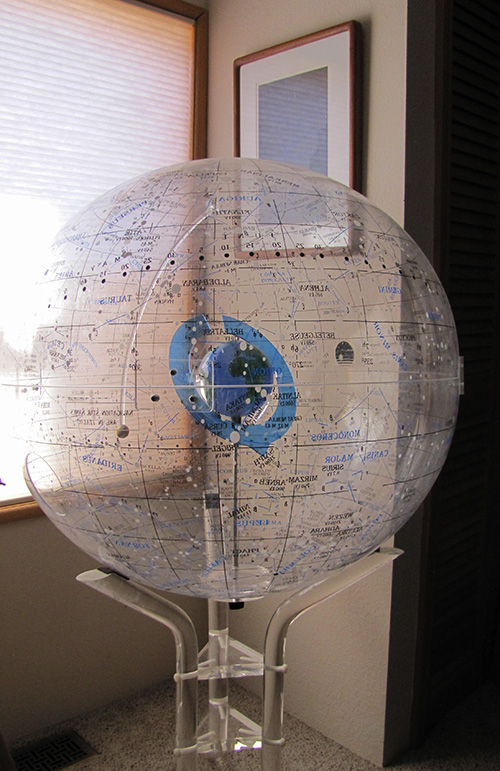

Spherical Concepts celestial globe
A lifelong collection of vintage (print) star charts and object catalogues --
honestly just a sampling! (please forgive the upside-down seminal Atlas
Coeli 1950.0 reference text on far left)

One such available online "atlas" (usually now called planetarium programs) is TheSky -- I had an opportunity to review (essentially personally learn the basics because I didn't get it!) of this program with the very patient co-founder/inventor, Mr. Thomas Bisque of Software Bisque in Golden, Colorado -- below, the brothers Bisque -- that's Tom second from the left and brilliant brother and co-founder Steven Bisque to Tom's right -- brother Daniel to Tom's left, and Matthew to his left -- all at an astronomy trade show. Employee Richard A. Wright (not pictured here) is a frequent contributor to Sky and Telescope magazine, and is a preeminent astrophtotgrapher.

Bisques

TheSky is now considered the finest planetarium, telescope and camera control and remote observing program(s) in the world. The brothers Bisque essentially invented remote computer-driven astronomical observing. Most professional observatories use their software package. Software Bisque also makes the best commercially-available mount in the world.

Also, TheSky has always been cross-platform and now is a leader in the iPad astronomical app category as well -- this is appreciated by Mac enthusiasts such as myself! Example screen shots below.

TheSky mythological figure
TheSky star chart
TheSky Orion Nebula

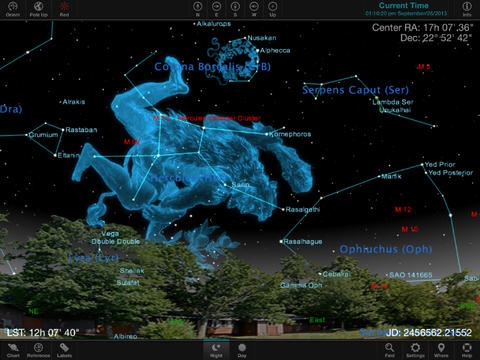

TheSky's constellation display with beautifully-rendered mythological figures

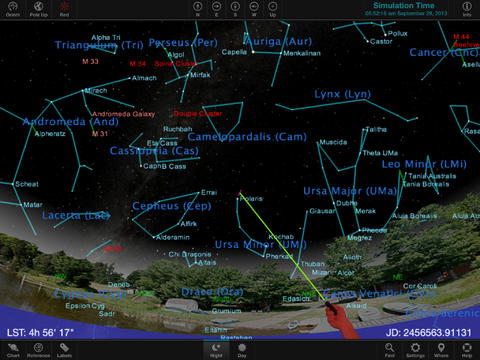

TheSky's typical constellation star chart display with labels -- note use of the green laser pointer -- we use one, too, both for visual and telescopic pointing

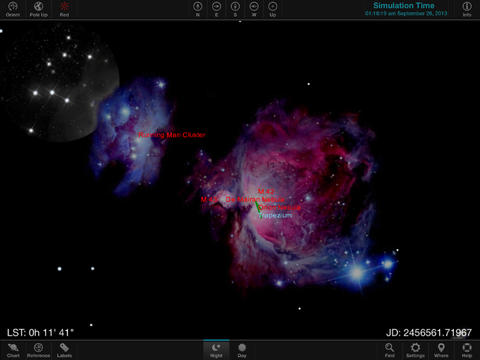

TheSky's magnified interpretation of the Orion Nebula -- compare with my image
TheSky star chart

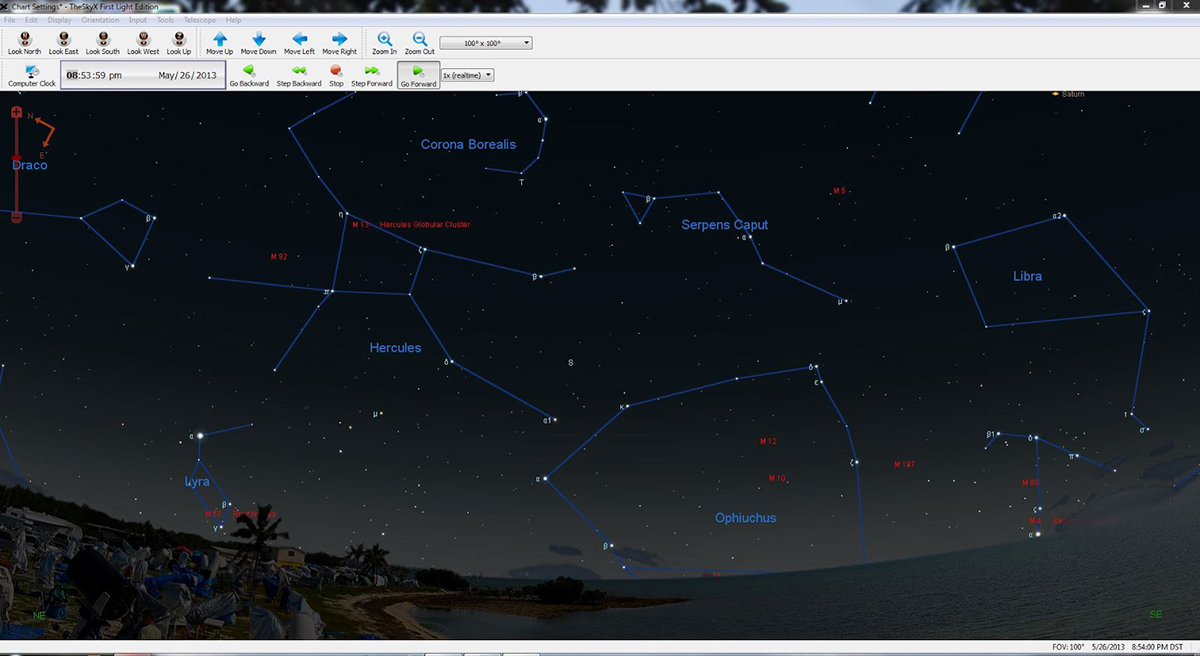

A typical TheSkyX (most recent desktop version) screen shot including landscape terrain and various labels (all customizable)

Another commonly used and equally excellent planetarium program available at RVO is Starry Night. Both this and TheSky can be useful for object location and identification, among many other uses.

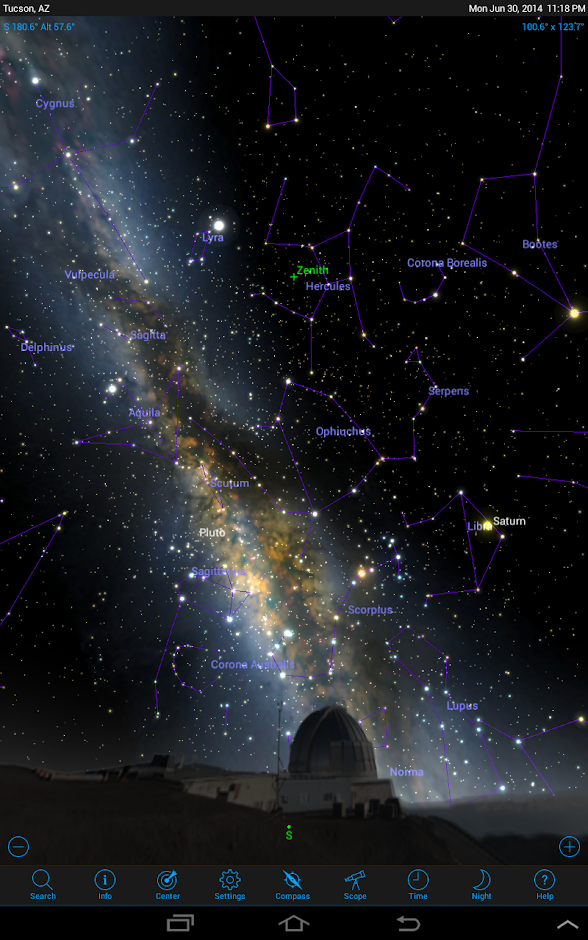

Having recently installed the automated go-to Celestron CGX mount in the roll-off building observatory, I now needed to "communicate" with it. For WiFi communication I use Celestron's WiFi dongle attached to the CGX mount to communicate with the simple, yet useful, SkyPortal software. It is a simplified version of Starry Night -- a more compete WiFi iPhone and Android app is the highly-acclaimed SkySafari. I am just working out the digital details of "talking" with the mount via the open-source Stellarium software. If all is successful, a "visual" observing session will involve calibrating the mount with a hand controller/WiFi tablet (teaching it what day, time, and location it occupies) and then plugging it into a portable Windows 10 tablet. Multiple observers can then view the screen of either the Windows or Android tablet, which ought to display various deep-sky objects in near-real-time video, as delivered by the superb Atik Infinity camera, mounted on the 10-inch reflector, as below. I have used this camera on the ES127ED 'scope with great success -- gallery linked here. Observers can even save their images on a flash or MicroSD Card-- examples as linked in the gallery -- and captured during THEIR observing session, to take home and keep!

SkyPortal dongle
SkyPortal

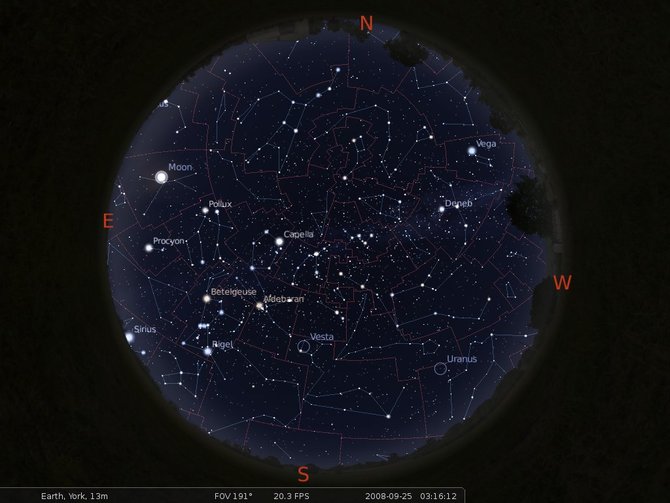

Stellarium
10-inch reflector

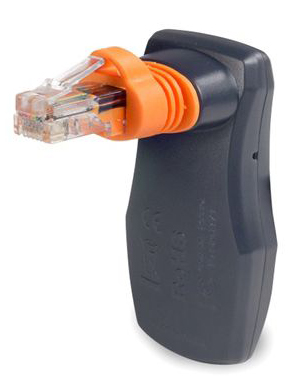

Celestron's SkyPortal WiFi dongle
Due to it's very fast optical speed, the 10-inch GSO f/4 reflector (mounted on Celestron's CGX automated platform) will be used for visual/video observing



A wonderful star-charting program, available on-line at NO CHARGE, is the magnificent Cartes du Ciel, linked from this text and/or by clicking the images below. These screen shots demonstrate several examples of its feature-filled and accurate sky depictions, especially deep sky objects under various magnifications as shown below. This is the star-charting program I now most commonly use.

Cartes du Ciel chart

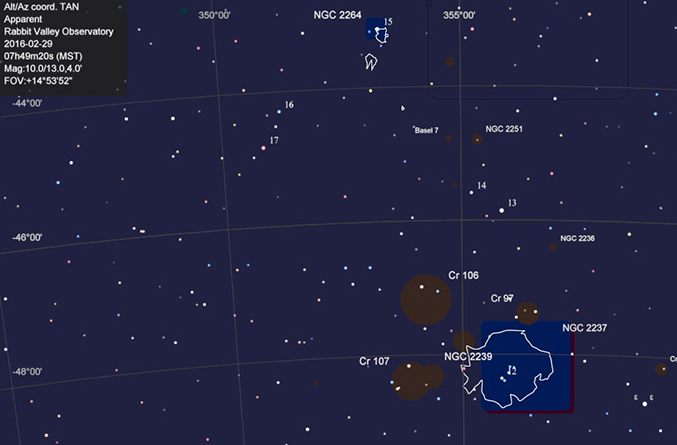

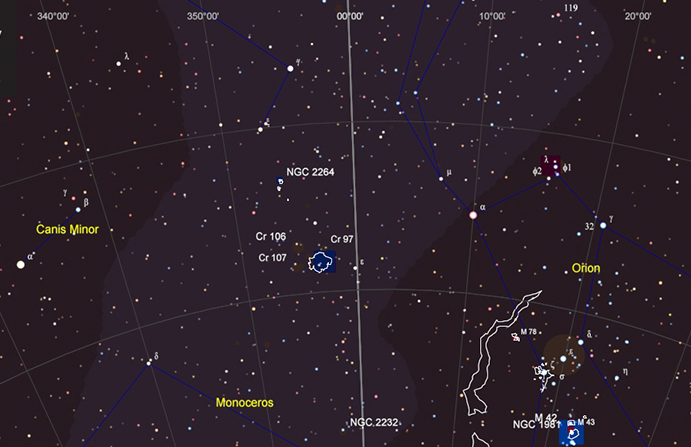

Cartes du Ciel Rosette chart

Every month publications like Sky and Telescope Magazine and Astronomy Magazine publish reference star charts. Further, they offer online tips for visual and photographic observation with a plethora of different types of equipment. I would strongly suggest referencing their websites and subscribing as well.

Relatively new among astronomical applications is a group know as "astronomical observation planning" software. Many are cross-platform, and similar to TheSky are also available for mobile devices. We use AstroPlanner at RVO. With such programs you can plan your observing session by setting basic parameters in the program. It will show you the location, apparent size of a desired observational object and has an immense data base linkage capability for descriptive analysis of objects of all types.

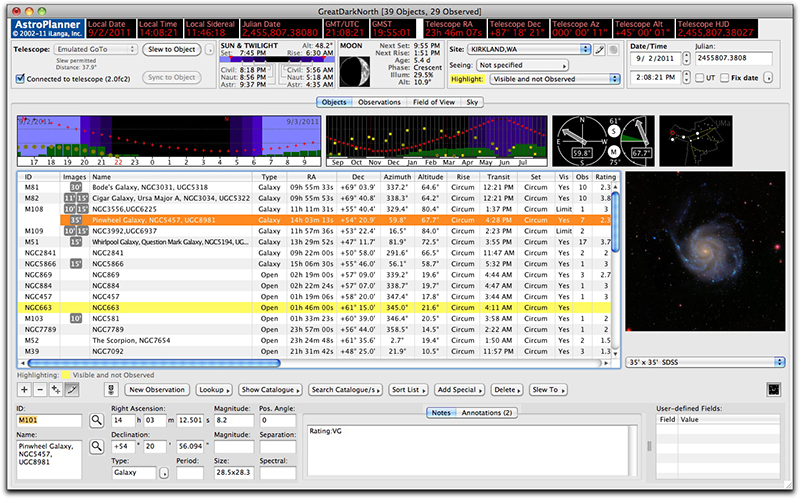

AstroPlanner object list

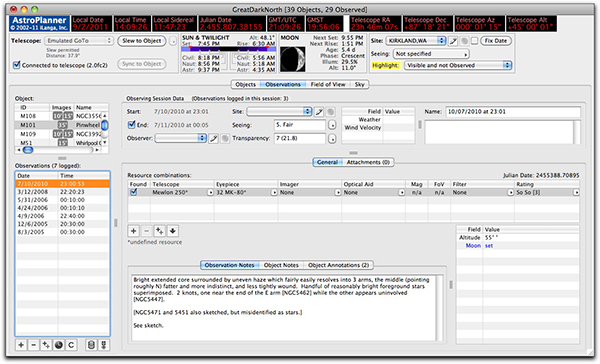

AstroPlanner observation notes

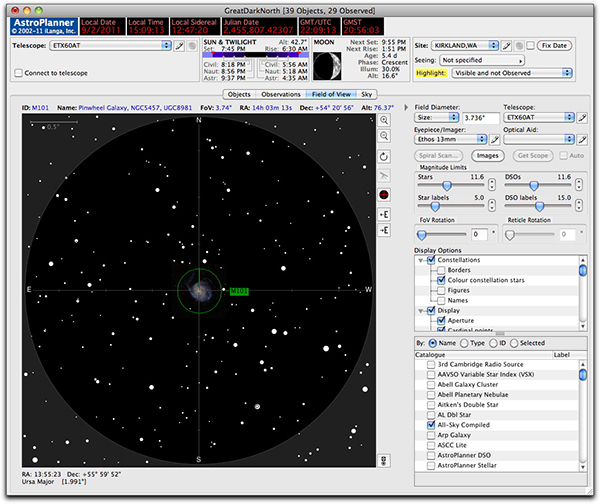

AstroPlanner field of view

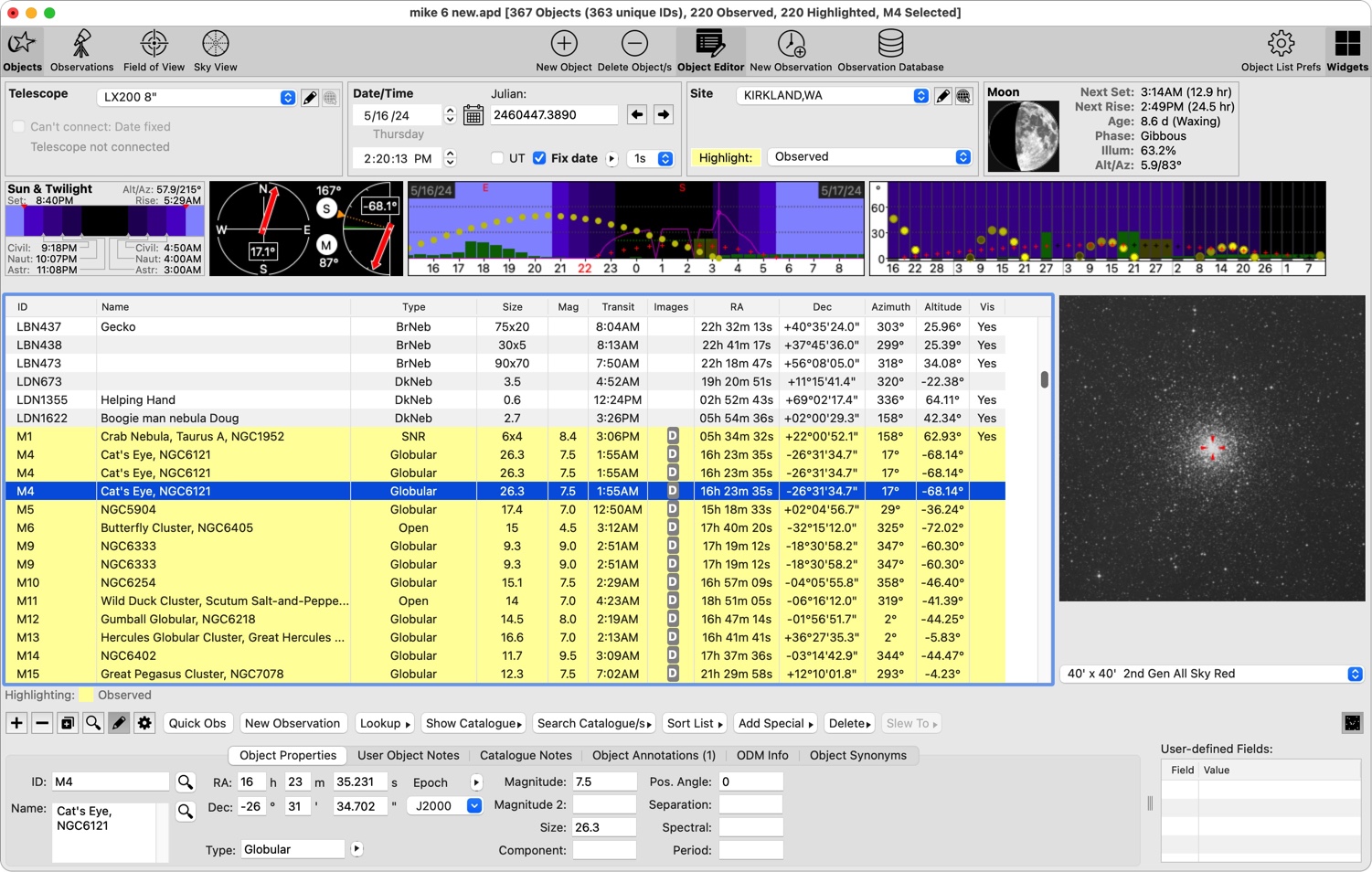

AstroPlanner observation notes tab

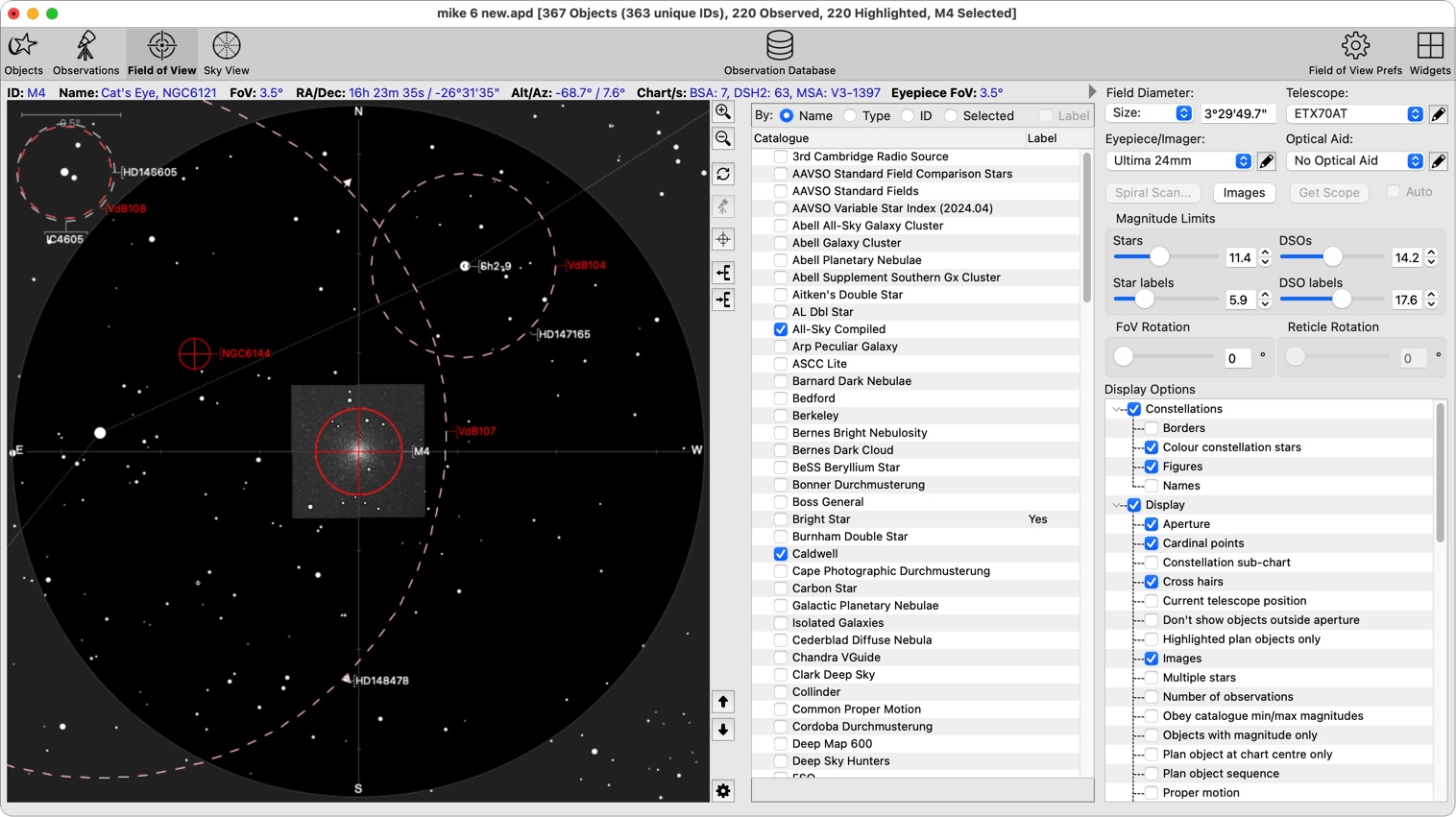

AstroPlanner field of view tab

The last step in planning an observation session would be to choose the right date. Weather certainly is an issue, as is darkness -- usually determined by a combination of observing location, time-of-night (duh!) and the moon's phase. This sort of determination also has a lot to do with what you would like to observe. If the moon is an object you'd like to observe or photograph, smaller, partial phases offer the best opportunity, as the moon exhibits a line (or "terminator") between the lit and non-lit portions. Craters and other details are far more prominent along the terminator. If planets are your thing, the moon's phase isn't significant one way or the other. If deep-sky nebulae, galaxies and clusters interest you, it's best to observe with little or no moon. The below charts and corresponding links will explain more concerning these important considerations.

Lunar phases -- click on "moon phase" area for more information





AR152
Atik Infinity
video setup

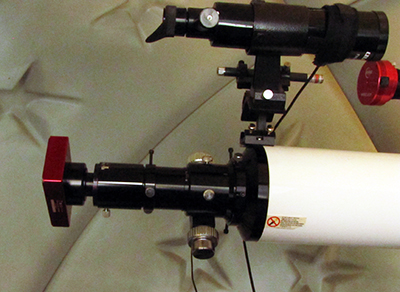

The Explore Scientific AR152 (6-inch) refractor pier-mounted on a Celestron CGX GEM mount can also used for visual observing. For video astronomy (very new to RVO's regime) the Atik Infinity CCD real-time video camera is employed. Click this text to review some of their informative instructional youtube videos. Click the camera's image to read a review of the unit. Actual viewing is accomplished by looking at the on-site laptop computer screen, attached to the camera via usb. Click around the Atik youtube related links to explore other "live" video streams using this camera. Pictured above is RVO's Atik Infinity video camera attached to the business-end of the ES127ED APO refractor. On its "maiden voyage," patient "experimental" observers Emily and Keith from London, England were delighted to observe on the in-dome computer screen wonderful renditions of such objects as the Orion Nebula (M42), various open star clusters including M37 in Auriga -- the observing session quite dramatically ending up with the impressive double Whirlpool Galaxy (M51). Astronomer Lewis (Willis) Greiner was delighted that everything worked pretty much as planned -- the evening was a wonderful, fulfilling, life-affirming experience; accurately reflecting the luminous Emily’s passion of teaching refugees yoga and life-skills, which is her business. Info here at www.ourmala.com. Their mission statement is "Standing with refugees & people seeking asylum.” She exudes a caring, giving quality that was fully obvious. Another personally wonderful, lasting memory of the evening -- when I asked, Emily said that the reason she chose me and the RVO experience was because of the passion demonstrated, she claimed, by my writing on this website. What a wonderful thing to say! Both she and Keith were inspirational to me. As an observing note, we worked under a full Moon -- normally this exercise is astronomically taboo, as the Moon creates so much ambient light that observing deep sky objects is impossible. We were all in wonder as to the sensitivity of the video camera and the overall success of the experience. Click this text for a log of this initial video/visual session, including typical images obtained through screen grabs with the Atik Infinity video camera.






OK, so enough with the planning. What do objects that, once found with the telescope by using the above tools, look like? I'll include below some photographic examples of "typical" observable objects and their apparent visual appearance. Click on the images to link back to their original publication and detailed descriptions. Also please understand that magnification, field of view and type of object -- as well as dark, clear skies of course -- have a significant effect on the appearance of an object.



Jupiter
Saturn
Jupiter from Kitt Peak, AZ -- although it will appear a bit smaller visually, I would expect you to see the complex belting, red spot and surface features and at least 4 moons of the planet (1 visible here).
Saturn from Kitt Peak, AZ -- although it will appear a bit smaller visually, I would expect you to see the belting on the planet, the rings (of course!) and the dark Cassini's division between the large inner and outer ring system -- also, you should see 1 moon, the giant Titan, the largest planetary satellite by far in our solar system. Titan has the gravitational pull to hold an atmosphere and sports "lakes" of frozen methane. [Editor's note -- if you have never seen Saturn through a telescope, it ought to be on your "bucket list!" Many astronomer-types (me included) began a lifetime journey after their first mind-blowing view of this celestial gift -- no photograph (certainly also including mine, above) does it justice!]
open star cluster NGC2158
globular star cluster M15
galaxy NGC7331
Open star cluster NGC2158 from Kitt Peak -- these are easy objects -- we should see them quite a bit better than this photo shows. Globular star cluster M15 from Kitt Peak -- we should see such object-types with far better detail than this, depending on seeing conditions. Visual observations of such globular clusters are always awesome! Spiral galaxy NGC7331 from Kitt Peak -- such objects can be difficult visually -- usually they appear as bright, fuzzy blobs, but with effort sometimes the spiral arms DO appear.
Planetary nebula M1
M42 Orion Nebula
Planetary nebula M1 from Kitt Peak -- this detail in this photograph is more than you will see visually, but you WILL be able to pick out such planetary nebulae and their shape -- they are usually quite small. M42 Orion Nebula -- taken from RVO (my original finalized image) and really a rather typical visual view. Oddly, the nebula appears green to the human eye, but the visual green and photographic red coloring is certainly unmistakable -- rare in deep-sky visual observing. Also, the Trapezium 4-star system in the center of the nebula is visually stunning -- here it is overexposed in the bright center section of the nebula.






So, in conclusion, please consider signing up for a visual observing session at Rabbit Valley Observatory. Just e-mail me and we'll talk about your visual observing goals and ambitions. Mostly, you and I will be awe-struck by the beautiful dark skies and we will have fun!
